HTML 레이아웃 구조 만들기(웹디자인기능사 실기 예시)

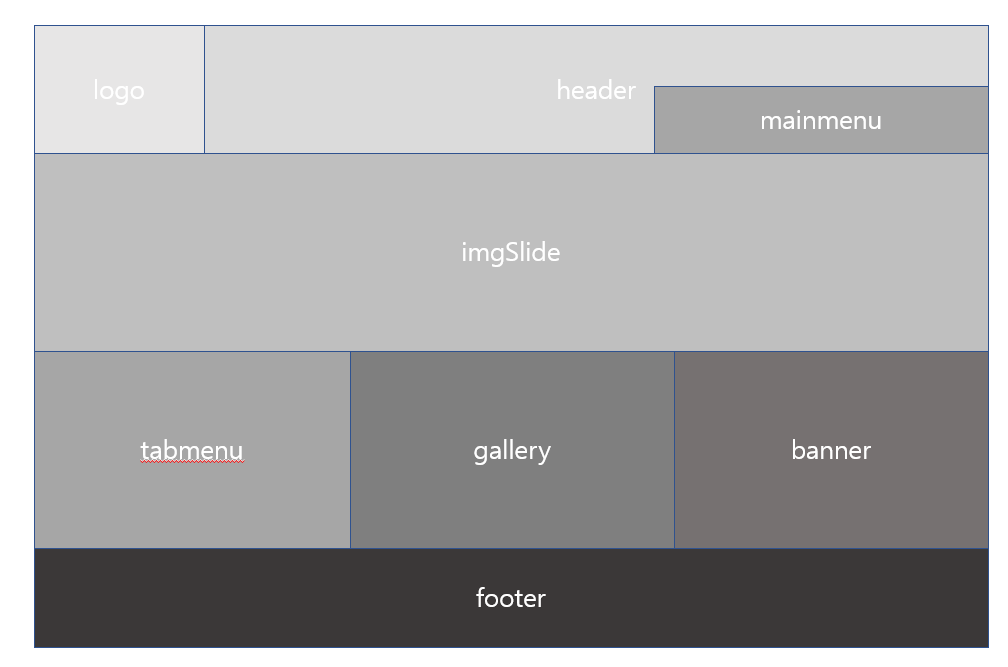

오늘 만들 레이아웃 구조





1. html 구조 틀 잡기

    <div id="wrap">
        <header id="header" class="clearfix">
            <h1 class="logo"></h1>
            <nav class="mainmenu"></nav>
        </header>
        <section id="imgSlide"></section>
        <section id="contents" class="clearfix">
            <div class="tabmenu"></div>
            <div class="gallery"></div>
            <div class="banner"></div>
        </section>
        <footer id="footer" class="clearfix">
            <div class="footlogo"></div>
            <div class="copyright"></div>
            <div class="sns"></div>
        </footer>
    </div>





2. css 초기화

<style>
        /* reset */
        * {margin:0; padding:0; color:#333;}
        .clearfix::before, .clearfix::after {content: ''; clear: both; display: block;}
</style>



clearfix : 자식을 float 적용하면 부모가 자식을 감싸지않기때문에 부모 높이가 0이 되버린다.

clearfix는 0이 된 부모 높이를 되찾아주는 역할



3. wrap

    <style>
        /* reset */
        * {margin:0; padding:0; color:#333;}
        .clearfix::before, .clearfix::after {content: ''; clear: both; display: block;}
        /* wrap */
        #wrap {width:1200px; height:1000px; margin:0 auto;}
    </style>



margin: 0 auto -> 가운데 정렬



4. header

    <style>
        /* reset */
        * {margin:0; padding:0; color:#333;}
        .clearfix::before, .clearfix::after {content: ''; clear: both; display: block;}
        /* wrap */
        #wrap {width:1200px; height:1000px; margin:0 auto;}
        /* header */
        #header {width:100%; height:200px; background: #999;}
        #header .logo{float:left; width:200px; height:200px; background: #888;}
        #header .mainmenu {float:right; width:700px; height:100px; background: #777; margin-top:100px;}
    </style>



결과

5. imgSlide

    <style>
        /* reset */
        * {margin:0; padding:0; color:#333;}
        .clearfix::before, .clearfix::after {content: ''; clear: both; display: block;}
        /* wrap */
        #wrap {width:1200px; height:1000px; margin:0 auto;}
        /* header */
        #header {width:100%; height:200px; background: #999;}
        #header .logo{float:left; width:200px; height:200px; background: #888;}
        #header .mainmenu {float:right; width:700px; height:100px; background: #777; margin-top:100px;}
        /* imgSlide */
        #imgSlide {width:100%; height:300px; background: #666;}
    </style>

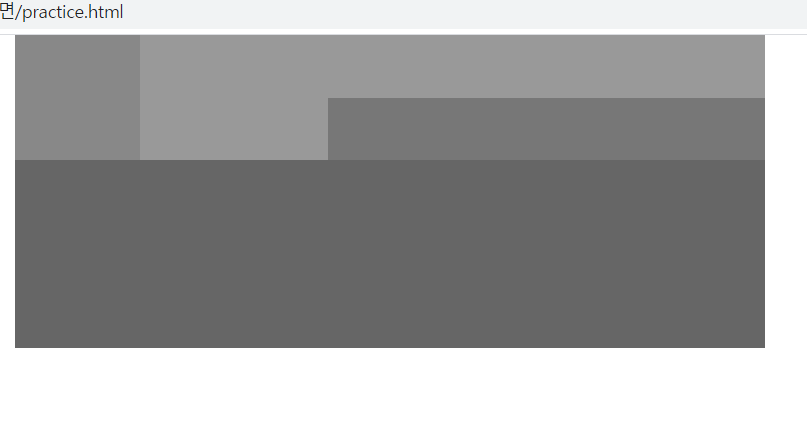

결과



6. contents

    <style>
        /* reset */
        * {margin:0; padding:0; color:#333;}
        .clearfix::before, .clearfix::after {content: ''; clear: both; display: block;}
        /* wrap */
        #wrap {width:1200px; height:1000px; margin:0 auto;}
        /* header */
        #header {width:100%; height:200px; background: #999;}
        #header .logo{float:left; width:200px; height:200px; background: #888;}
        #header .mainmenu {float:right; width:700px; height:100px; background: #777; margin-top:100px;}
        /* imgSlide */
        #imgSlide {width:100%; height:300px; background: #666;}
        /*contents */
        #contents {width:100%;}
        #contents .tabmenu {width:400px; height:300px; float:left; background: #555; }
        #contents .gallery {width:400px; height:300px; float:left; background: #444;}
        #contents .banner {width:400px; height:300px; float:left; background: #333;}
   </style>



결과



7. footer

    <style>
        /* reset */
        * {margin:0; padding:0; color:#333;}
        .clearfix::before, .clearfix::after {content: ''; clear: both; display: block;}
        /* wrap */
        #wrap {width:1200px; height:1000px; margin:0 auto;}
        /* header */
        #header {width:100%; height:200px; background: #999;}
        #header .logo{float:left; width:200px; height:200px; background: #888;}
        #header .mainmenu {float:right; width:700px; height:100px; background: #777; margin-top:100px;}
        /* imgSlide */
        #imgSlide {width:100%; height:300px; background: #666;}
        /*contents */
        #contents {width:100%;}
        #contents .tabmenu {width:400px; height:300px; float:left; background: #555; }
        #contents .gallery {width:400px; height:300px; float:left; background: #444;}
        #contents .banner {width:400px; height:300px; float:left; background: #333;}
        /* footer */
        #footer {width:100%;}
        #footer .footlogo {width:20%; height:200px; background: #222; float:left;}
        #footer .copyright {width:60%; height:200px; background:#111; float:left;}
        #footer .sns {width:20%; height:200px; background: #222; float:left;}
    </style>

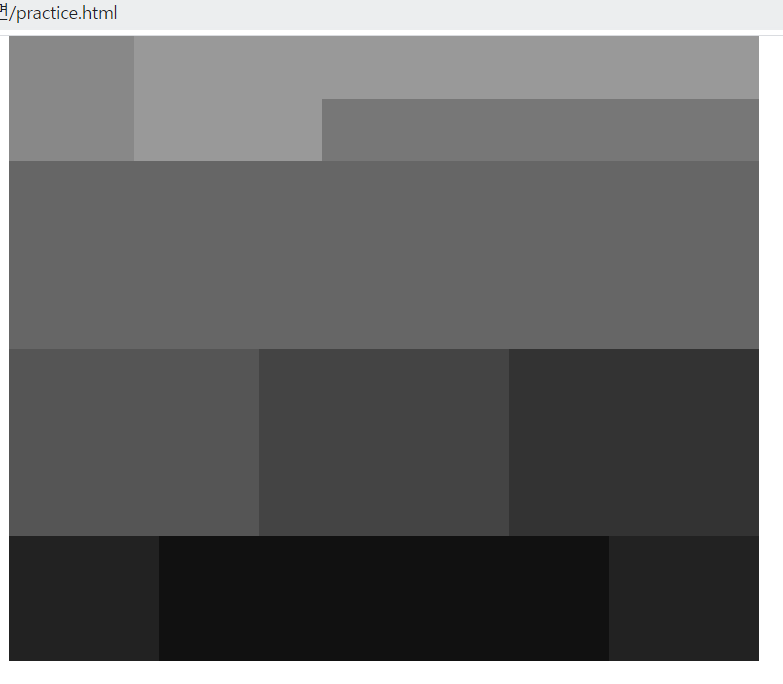

최종결과
